QSL1000 Atsperu pacelšanas galds un QAL1000 Ātrais gaisa spilvenu iekrāvējs

Rotējošā darba galda īpašības:

  • Automātiski uzturiet kravu ideālā augstumā manuālai iekraušanai un izkraušanai
  • Nav nepieciešama elektroenerģija
  • Stabilajam dizainam nav nepieciešama grīdas novirze.
  • Mazā pamatne ļauj darbiem stāvēt tuvu rūpnieciskajiem šķērveida pacēlājiem jebkurā pozīcijā.
  • Viegli pārvietojams uz jebkuru vietu, izmantojot papildaprīkojuma galda pārvietotāju bez iekrāvēja.

Compare with general lift tables, this QSL1000 series Spring Level Loader  and QAL1000 airbag pallet positioner  is a rotating lift table which can automatically maintain a load at the ideal height for manual loading and unloading without any electric or any manual operation, this lift table with rotate plate can automatically maintain at the top of the load as the working height to  reduce the discomfort of long-term bending just with the spring force of the spring/airbag and the gravity of the cargo.

Video šovs:





SpecificationDetailsDifference
  • i-Lift Nr.13136011313604
    ModelisQSL1000QAL1000
    Jaudakg (mārciņas)200-2000(440-4400)100-2000(220-4400)
    Saspiests augstumsmm (collas)240(9.4)265(10.4)
    Pagarināts augstumsmm (collas)710(28)710(28)
    Rotējošs gredzens, ārpus dia.mm (collas)1110(44)1110(44)
    Rotējošs gredzens diametra iekšpusē.mm (collas)1035(40.7)1035(40.7)
    Pamatne Rāmja garumsmm (collas)1150(45.3)1150(45.3)
    Pamatnes rāmja platumsmm (collas)930(36.6)930(36.6)
    OpcijaPaceļams galds Mover

QAL1000 informācija:

It has an air charging port and pressure regulating knob, so you can adjust the height by adjust the air pressure. This can make up for the problem of oil leakage from ordinary Stationary Lift table

QSL1000 Details:

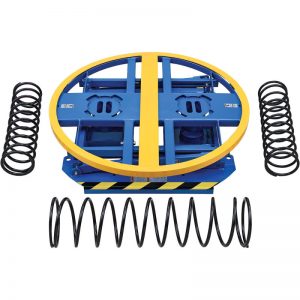

The frame of the Spring Activated Lift Table can handle loads of up to 4400 lbs. In order to adapt the unit for different pallet loads, the springs are changed. The springs are chosen to match the weight and height of a fully loaded pallet. A unit may have one to three springs. Each time the pallet weight or pallet height is changed, the springs may also need to be  changed. Instructions will show you how the springs are selected. Each spring is color-coded with paint mark at one end.

Tajā ietilpst 3 dažādu izmēru atsperes, jūs varat tos brīvi sagrupēt pēc nepieciešamās ietilpības un augstuma. Aprīkots ar autokrāvēja “kabatu” ļauj transportēt starp dažādām darba vietām. “Pacēlāja galda virzītājs” nav obligāts arī tajās vietās, kur iekrāvējs nav pieejams.

Load weight range is 440 lbs. to 4,400 lbs. The Spring Pallet Positioner allows for 360° rotation for easy load access. Fork pockets also come standard for repositioning of theTurntable platform.

Kāda ir atšķirība starp Gaisa spilvenu iekrāvējs vai šķērveida pacelšanas galds ar atsperi?

  • Stabilitāte: compared with the Spring Pallet lever loader , the Airbag Level Loader is more stable, not easy to bump, and the shock absorption performance is better.
  • Dažādas pārnesumu regulēšanas metodes: the Spring Pallet scissor Lift table  has 3 springs, which can only be combined into different three loads by different combinations of three springs; The Airbag Pallet handing lift table can be adjusted arbitrarily by changing the air pressure.
  • Slodzes diapazons is different: the minimum load of spring Industrial Scissor Liftsis 440KG, the minimum load of air Skid Carousel Positioner can be less than 100KG, or even smaller.
  • Dažādas regulēšanas metodes: it is convenient to adjust the load of the airbag Pallet leveller. It only needs to deflate and inflate, and it can be completed under the condition of heavy objects on the table, without removing the table. But the spring Pallet Positioner  needs to be removed from the table to replace the spring collocation to adjust the load.
  • Gaisa spilvenu platforma ir jāaprīko ar gaisa pumpis.

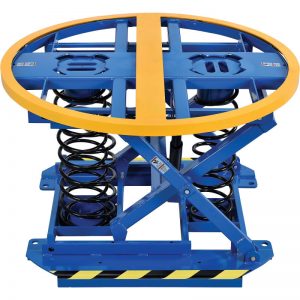

It is also a rotating platforma it can realize the operation of each side by rotating the surface of the spring lifters, so the workers can easily complete all loading and unloading works just keep the same posture. Not only improves productivity but also protects workers from long time bending.

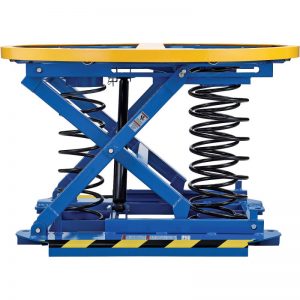

As weight is added to the Spring Actuated Level Loader , it causes the springs to compress, lowering the height of the platform. As weight is removed, the springs expand, raising the height of the lift and rotate table . Once properly calibrated for the maximum load weight, the lift will automatically stay at an ergonomic height.
