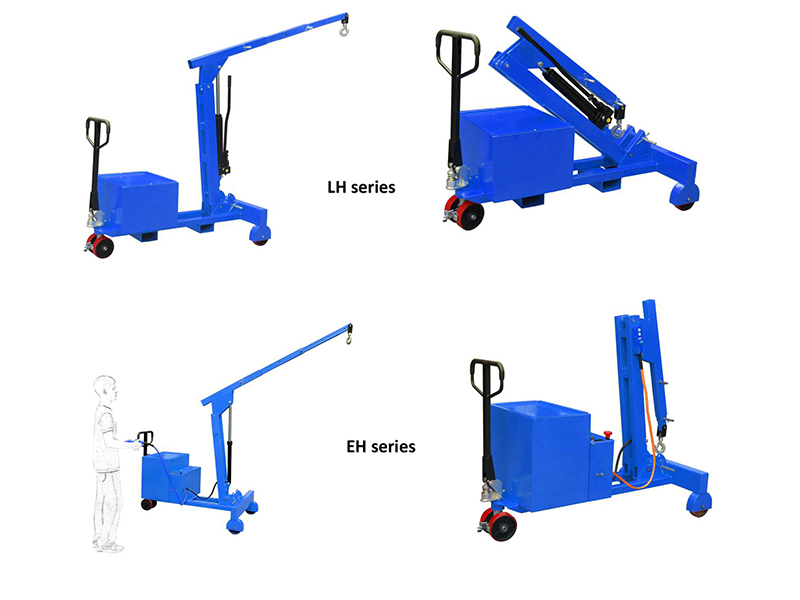

Introduction of counter-balanced floor crane
i-Lift counter-balanced floor crane is designed for transporting, lifting with unique operate handle, brake, and foldable design.
LH055J & LH075J are counter-balanced floor crane with double action hydraulic pump, EH055J & EH075J are counter balance floor crane with electric lifting. counter-balanced design allows to work close to a machine. Tested 25% overload before delivery.
The manual counter-balanced floor crane has models LH055J, LH075J, and the electric counter-balanced floor crane has models EH055J, EH075J for you choice.
We have this item in stock in France/US, if you are located in Europe or US, we can arrange delivery to you ASAP! This way will save your time and shipping cost.
Specifications of counter-balanced floor crane
i-Lift Nr. | 2342101 | 2342102 | 2342103 | 2342104 | |
Modelis | LH055J | LH075J | EH055J | EH075J | |
Jauda | kg (mārciņas) | 550(1210) | 750(1650) | 550(1210) | 750(1650) |
Maksimālā slodze strēles garumā 925 | kg (mārciņas) | 550(1210) | 750(1650) | 550(1210) | 750(1650) |
Maksimālā slodze strēles garumā 1210 | kg (mārciņas) | 450(990) | 500(1100) | 450(990) | 500(1100) |
Maksimālā slodze pie strēles garuma 1500 | kg (mārciņas) | 350(770) | 380(836) | 350(770) | 380(836) |
Maksimālā slodze ar strēles garumu 1800 | kg (mārciņas) | 250(550) | 260(572) | 250(550) | 260(572) |
Maksimālā slodze strēles garumā 2080 | kg (mārciņas) | 150(330) | 200(440) | 150(330) | 200(440) |
Hidrauliskais sūknis | Divkārša darbība | Elektriski | |||
ritenis | mm (collas) | Tērauds + PU Dia180 (7 ") | |||
Maksimālais celtņa rokas garums | mm (collas) | 2080(81.9) | |||
Minimālais celtņa rokas garums | mm (collas) | 930(36.6) | |||
Pacelšanas augstums: maksimālā konsoles roka | mm (collas) | 2750(108.3) | |||
Kopējais izmērs (L * W * H) | mm (collas) | 2400*910*1630(94.5*35.8*64.2) | |||
Iepakojuma lielums (L * W * H) 2 gab | mm (collas) | 2400*1900*1700(94.5*74.8*66.9) | |||
Akumulators | V / Ah | --- | --- | 12/60 | 12/80 |
Lādētājs | V / A | --- | --- | 12/8 | |
Svars (bez pretsvara un kastes) | kg (mārciņas) | 180(396) | 215(473) | 220(484) | |
pretsvara kastes svars | kg (mārciņas) | 210+30(462+66) | 280+40(616+88) | 210+30(462+66) | 280+40(616+88) |
Kopējais svars (ar pretsvaru un kārbu) | kg (mārciņas) | 420(924) | 500(1100) | 455(1000) | 540(1188) |
LH055J counterbalanced mobile floor crane

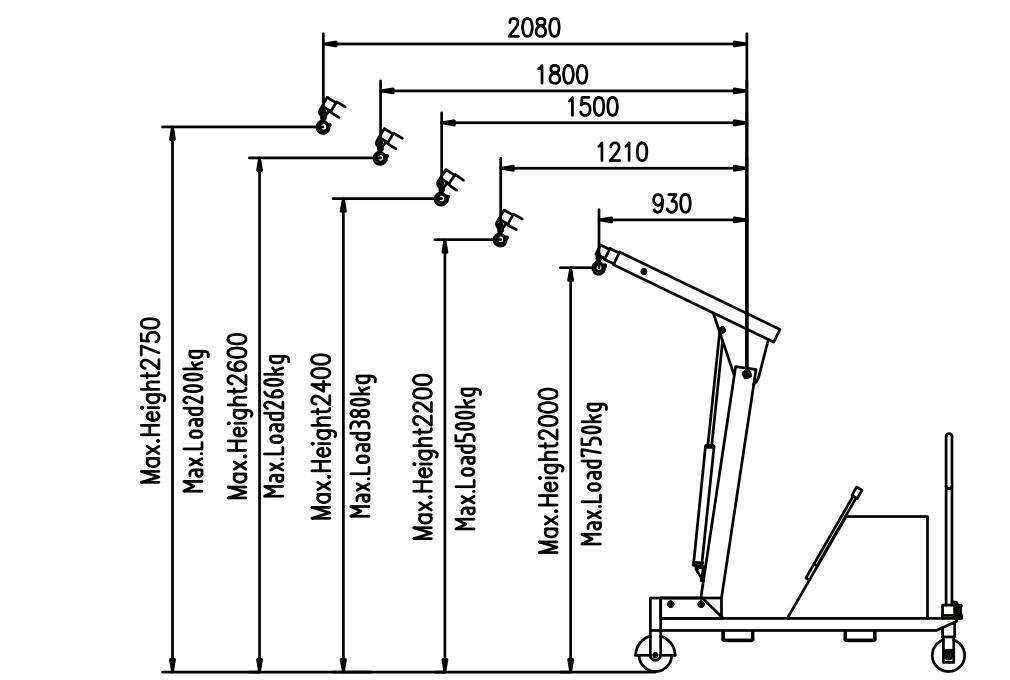

Celšanas kronšteina garums (L) (mm) | 925 | 1210 | 1500 | 1800 | 2080 |
Maks. Tilpums (kg) ar diviem atsevišķiem līdzsvarotiem blokiem (standarta) | 550 | 450 | 350 | 250 | 150 |
Maks. Ietilpība (kg) ar vienu atsevišķu līdzsvarotu bloku | 420 | 350 | 270 | 190 | 110 |
Maks. Tilpums (kg) bez atsevišķa līdzsvarota bloka | 300 | 250 | 190 | 130 | 60 |
LH075J counterbalanced mobile floor crane
Celšanas kronšteina garums (L) (mm) | 925 | 1210 | 1500 | 1800 | 2080 |
Maks. Tilpums (kg) ar diviem atsevišķiem līdzsvarotiem blokiem (standarta) | 750 | 500 | 380 | 250 | 200 |
Maks. Ietilpība (kg) ar vienu atsevišķu līdzsvarotu bloku | 550 | 450 | 350 | 250 | 150 |
Maks. Tilpums (kg) bez atsevišķa līdzsvarota bloka | 420 | 350 | 270 | 190 | 110 |
Additional Function of counter balanced floor crane (Value–added for our customer)
Pretsvara līdzsvara vienība sastāv no 2 atsevišķiem līdzsvarotiem blokiem, katra svara 23 kg (LH05J) un 35 kg (LH075J). Atdalot bloku, iegūst jaunu jaudu (120% pārslodzes pārbaude pirms piegādes). Stingri ievērojiet zemāk esošo ietilpības tabulu un nekad nepārslogojiet to.
The model allows lifting and handling loads up to 500 kg. It is equipped with an extremely light double-acting hand pump which allows fast lifting. A handwheel for the descent of the arm positioned near the pump allows the regulation of the descent speed, the arm is extensible to 4 different positions.
Šis modelis lietotājam neprasa nekādu sertifikāciju vai autorizāciju. Ir pieejams pagarinājuma piederums, lai palielinātu pārkari līdz maksimālajam garumam 1285 mm.
UZMANĪBU:
1) Never Overload use the counter balance floor crane
2) Change the capacity labels on the counter balance floor crane immediately after taking away the adjusting counterbalanced block.
Counter balanced floor crane (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hours operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.
